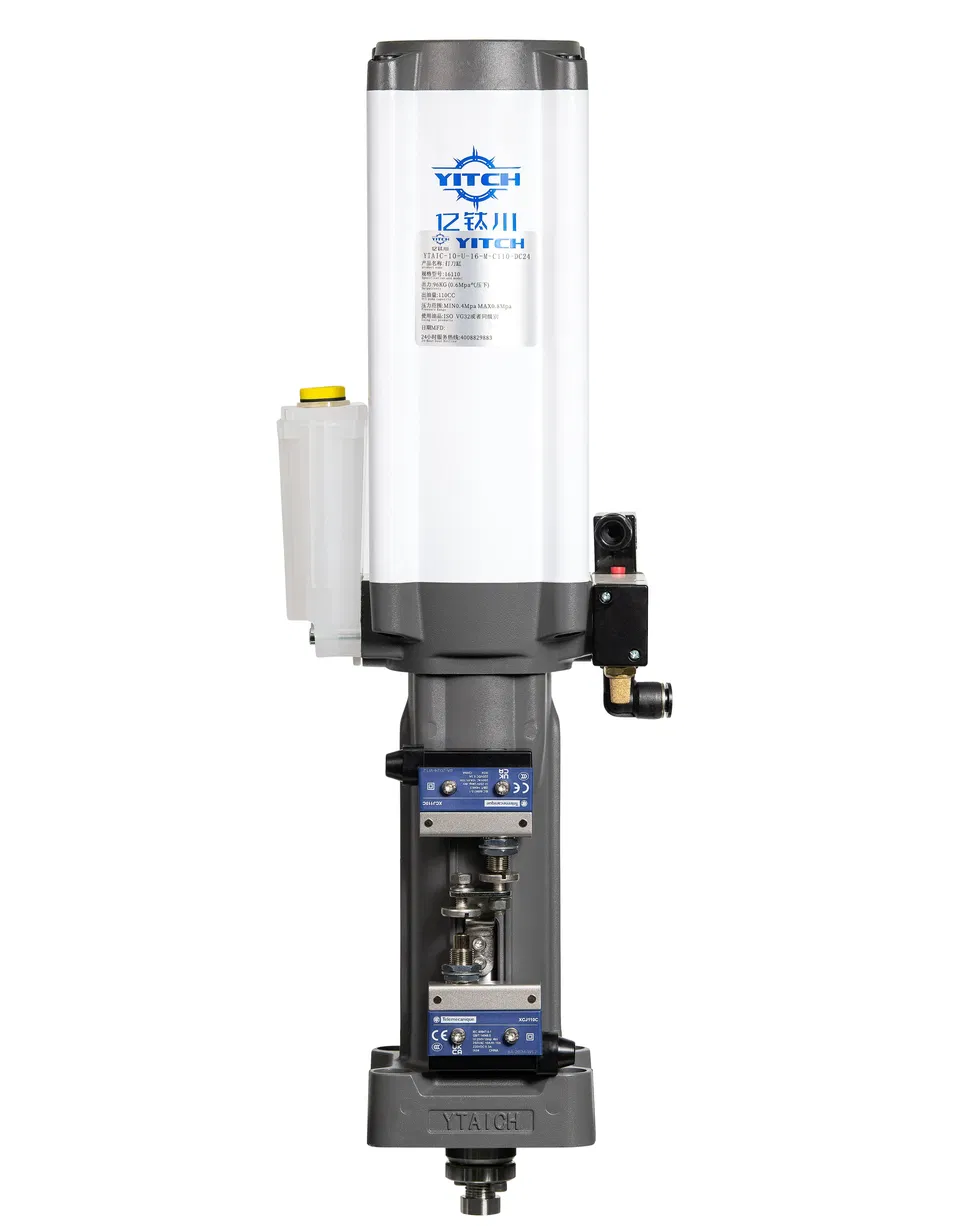

Heavy-Duty CNC Spindle Tool Clamp for Precision Pneumatic Punching

Customization:	Available
Logo Printing:	with Logo Printing
Size:	Small

Quantity:



Inquire Add to Basket

Heavy-Duty CNC Spindle Tool Clamp for Precision Pneumatic Punching Heavy-Duty Clamp CNC Spindle Tool Clamp

Product Description

Basic Info.

Model NO.

16110

Customized

Type

Knife Cylinder

Material

Metal

Certification

ISO 9001:2008

Power

Pneumatic

Pressure Direction

Double-Acting Cylinder

Video Outgoing-Inspection

Provided

Structure

Piston Cylinder

Weight

8kg

Transport Package

Carton

Specification

350*400*550

Trademark

YITCH

Origin

Shanghai, China

Product Description

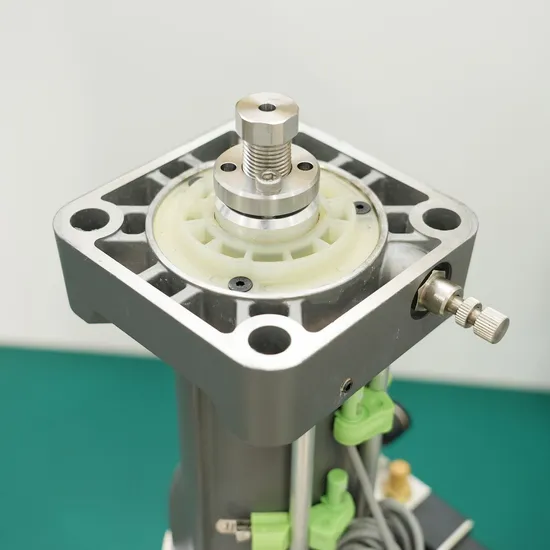

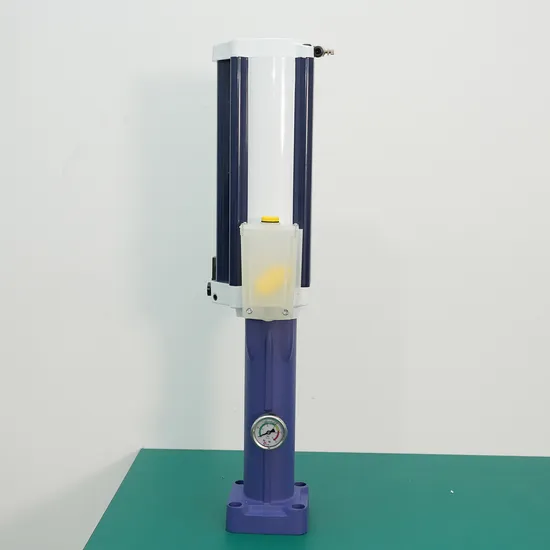

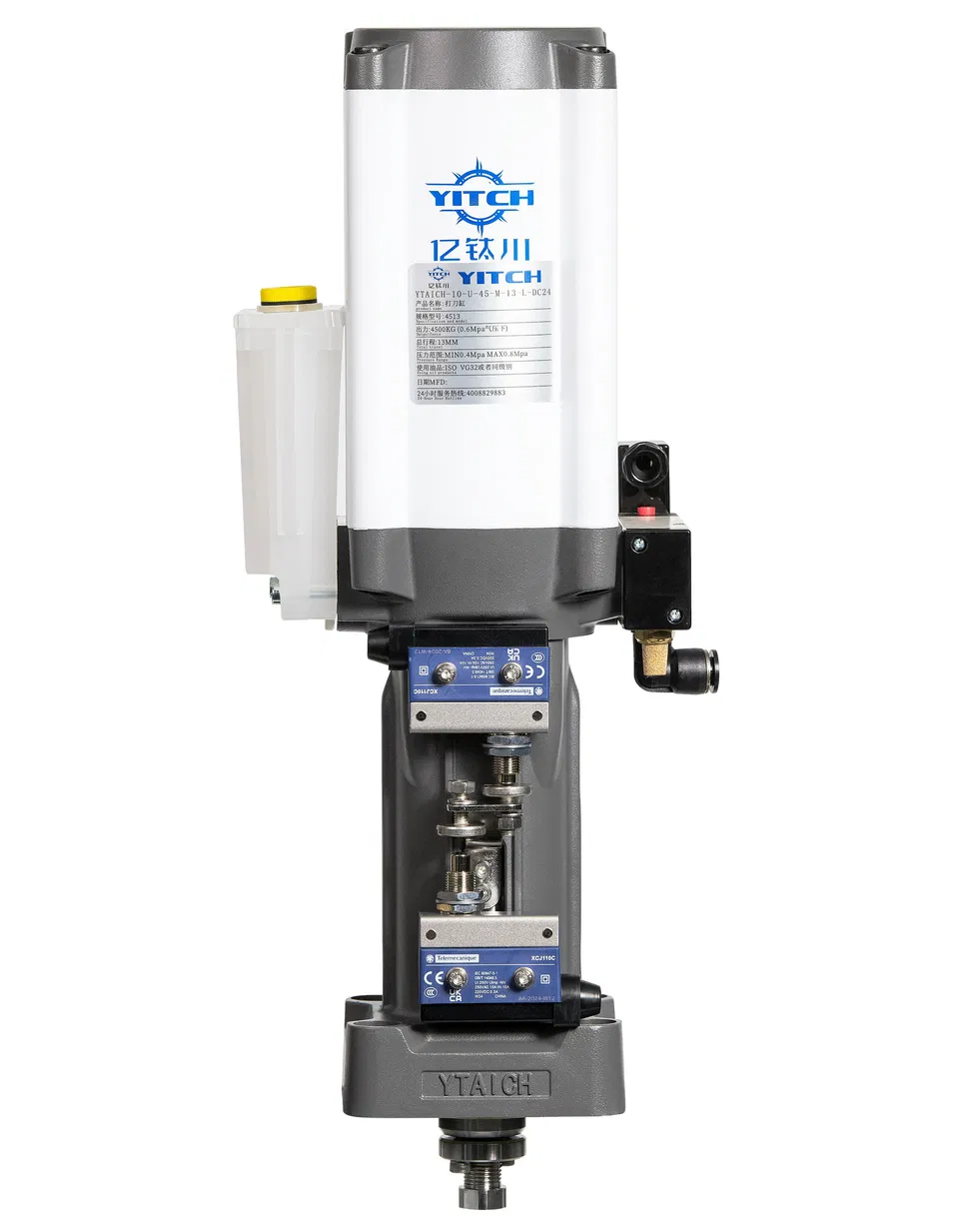

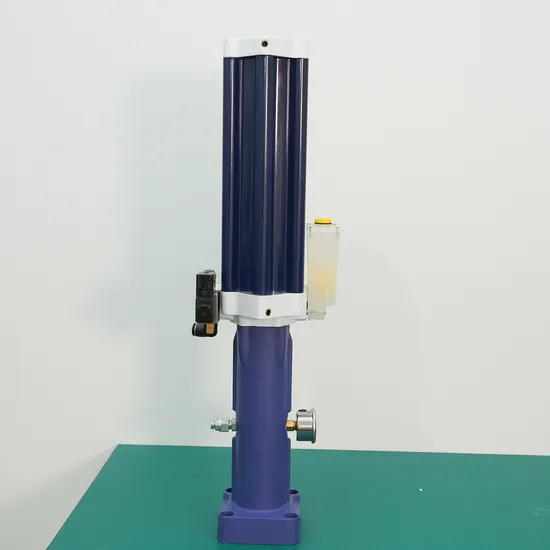

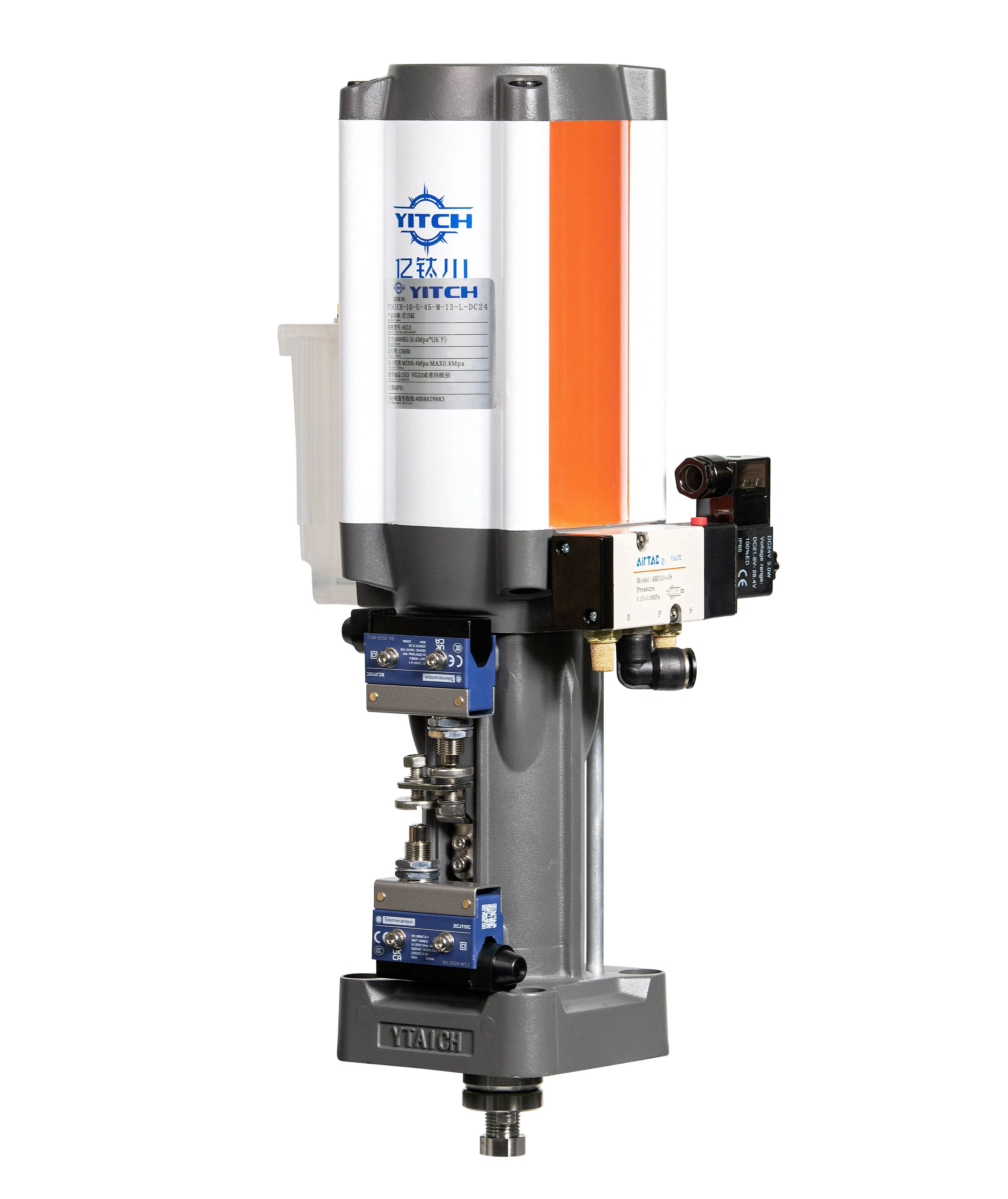

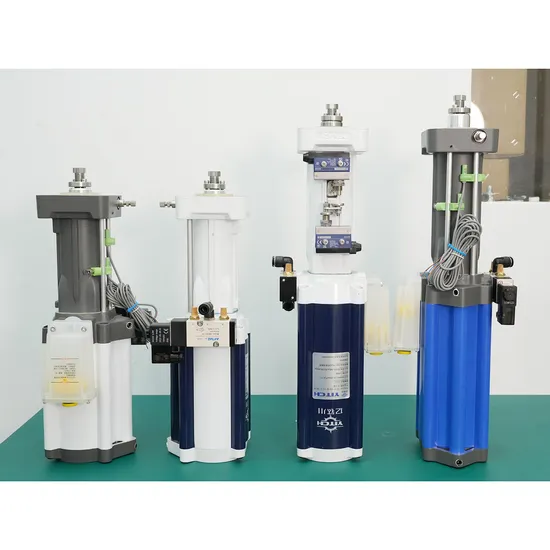

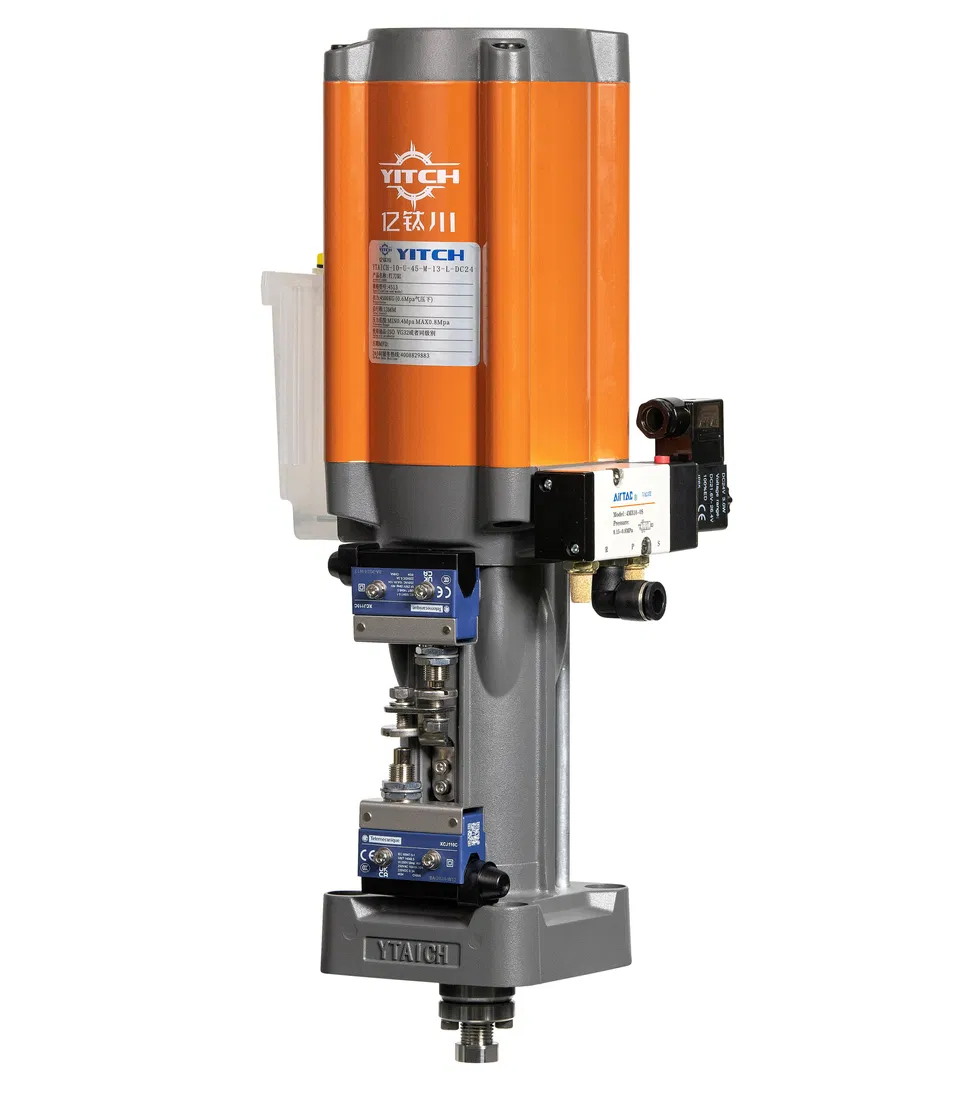

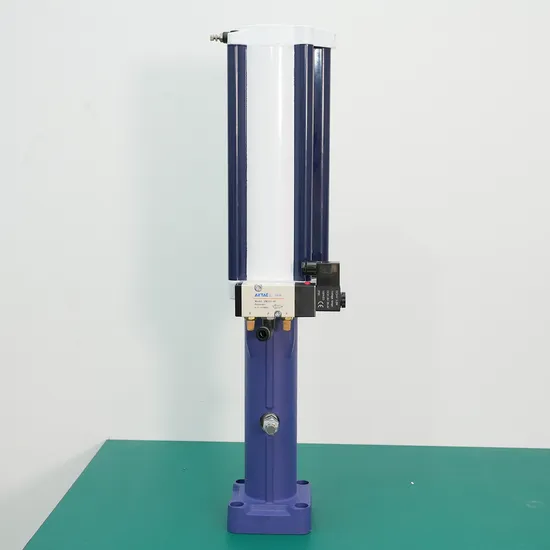

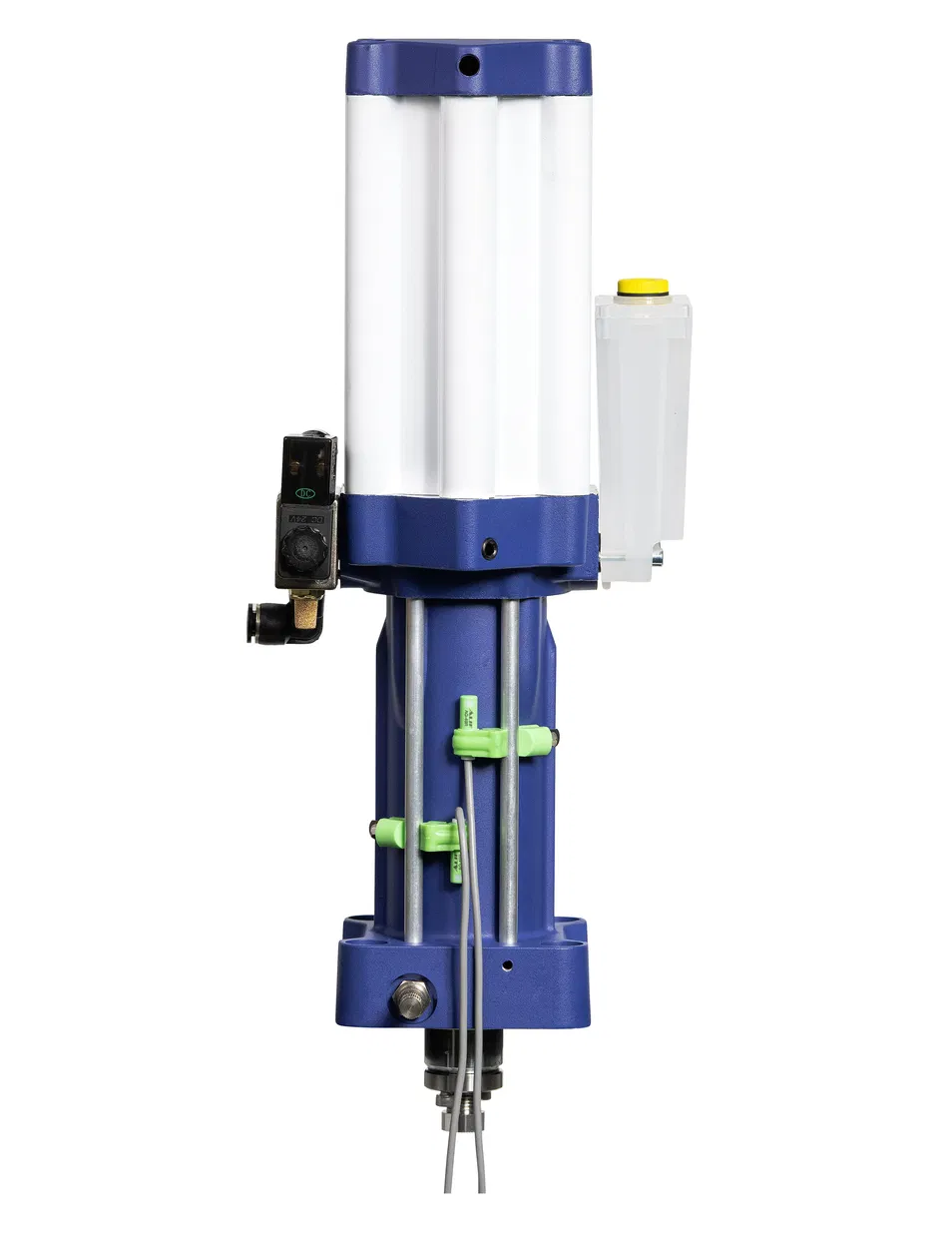

Product Description of Knife Cylinder

Our Knife Cylinder is a precision-engineered component designed to deliver reliable and efficient cutting performance in various industrial applications. Composed of high-quality materials like hardened steel and precision-machined parts, it integrates seamlessly into cutting machinery such as slitting machines, packaging equipment, and textile cutters. The cylinder generates controlled force to actuate cutting blades, ensuring clean, accurate cuts on materials ranging from thin films and papers to thick textiles and foams. With adaptable mounting and connection designs, it suits diverse machinery setups, providing consistent cutting action for optimized production workflows.

1. High-Precision Cutting Performance

Crafted with tight-tolerance machining, our Knife Cylinder ensures ultra-precise blade actuation. Its stable force output and linear motion control enable clean, burr-free cuts, even on delicate or high-tensile materials. Whether slitting narrow film strips or cutting thick textile rolls, it maintains cutting accuracy across repeated operations, reducing material waste and enhancing finished product quality.

2. Durable & Wear-Resistant Construction

Constructed from premium hardened steel and corrosion-resistant coatings, the Knife Cylinder withstands heavy use and harsh industrial environments. The wear-resistant piston and cylinder walls minimize abrasion, ensuring long service life even under continuous cutting cycles. This durability reduces maintenance frequency and replacement costs, delivering reliable performance for extended production runs.

3. Efficient Force Transmission & Responsiveness

Equipped with advanced sealing technology and optimized hydraulic/pneumatic pathways, the cylinder ensures efficient force transmission with minimal energy loss. Fast response times enable quick blade actuation, reducing cycle times in high-speed cutting operations. Whether operating at low or high pressures, it maintains consistent cutting force, adapting to varying material thicknesses and cutting demands.

4. Flexible Customization for Diverse Applications

We offer extensive customization options to match specific machinery and cutting requirements. From adjustable stroke lengths and force outputs to tailored mounting interfaces, the Knife Cylinder can be modified to fit unique equipment designs. Compatible with both hydraulic and pneumatic systems, it integrates seamlessly into existing production lines, providing a versatile solution for industries like packaging, textiles, and metalworking.

Shanghai Aohu was established on December 8, 2010, and is located at No. 365, Lianyang Road, Songjiang District, Shanghai. We are a manufacturing-based enterprise that integrates production, trade, and technical R&D.

Our factory covers an area of over 4,000 square meters, equipped with warehousing and inventory capabilities that allow us to respond swiftly to urgent customer orders. We currently have 4 technical R&D teams and 5 dedicated testing and inspection laboratories, with strong capabilities in both mass production and product innovation.

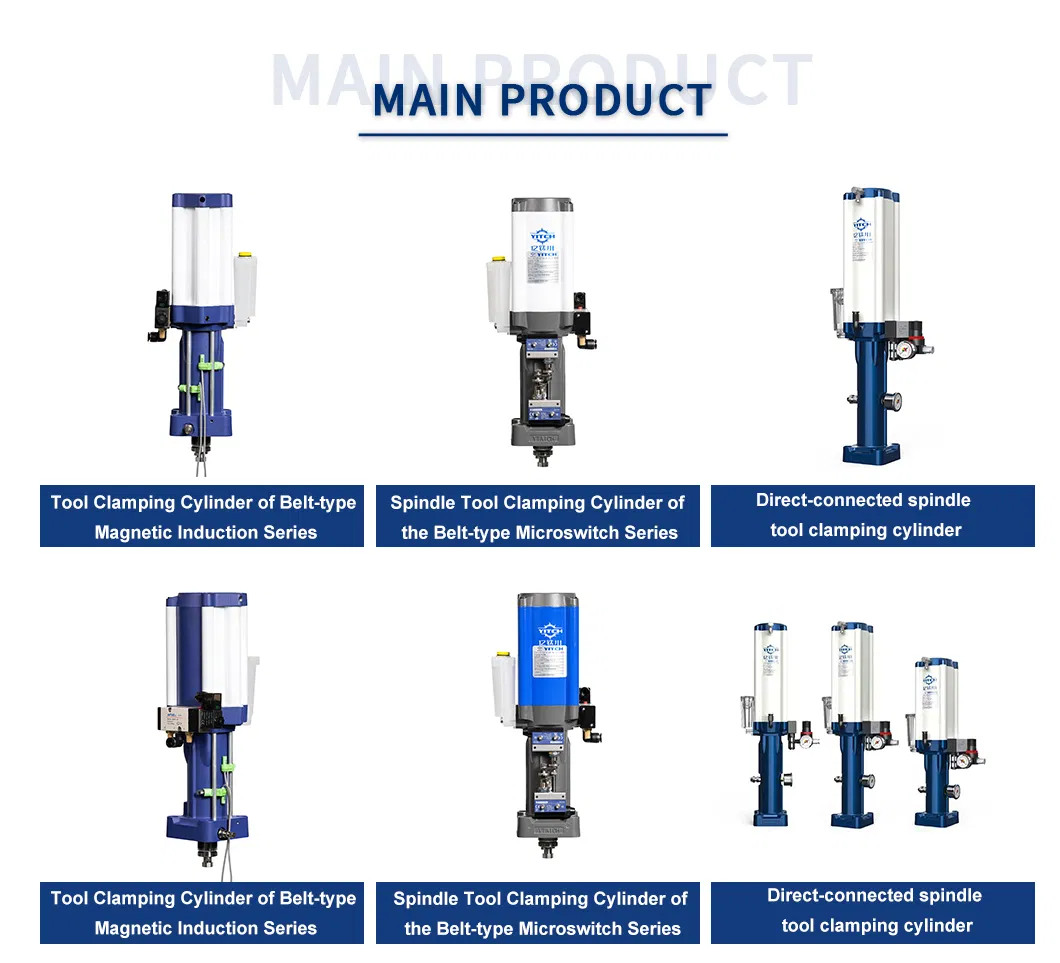

Our product portfolio includes:4th-Axis Motor Drives,4th-Axis Cables and Wiring, single-Axis Control Systems, Energy-Saving Hydraulic Systems, CNC Spindle Tool Release Cylinders, Hydraulic Booster Cylinders, High-Pressure Through-Spindle Coolant Systems,4th-Axis Assembly and Commissioning Services.
Adhering to the business philosophy of "Never sacrificing long-term value for short-term gain", we remain committed to customer-centric product development, always aiming to solve real-world pain points and deliver meaningful solutions.

Since our founding, we have remained deeply focused on the CNC machine tool industry. Through over a decade of learning and practical experience, the Aohu team has developed a profound understanding of the electrical and mechanical systems of rotary tables from over 100 global brands.

As a full-solution provider of core CNC machine tool components, Aohu offers a complete product lineup and one-stop sourcing service. This minimizes errors in model selection, scattered procurement, and post-installation support issues.

Focus, Professionalism, and Efficiency are our core strengths. Aohu will continue to refine our R&D and engineering teams to deliver expert technical solutions to customers around the world.

Aohu looks forward to a successful and mutually beneficial partnership with you!

Q1. Can I get samples?
Sorry, as our quotation is already very low, we are unable to provide you with samples. If you have a large purchase quantity, we can deduct the cost of sampling in our future cooperation.

Q2. Can I use my own logo or design on the products?
Yes, we provide OEM/ODM services. Your logo and design can be applied to the products, and we also support non-standard customization.

Q3. Do you have your own factory?
Yes, we have a 4,000-square-meter factory in Shanghai. You're welcome to visit our company and factory. We are a professional manufacturer with an efficient R&D team, providing OEM/ODM services to customers.

Q4. What is your factory's production capacity?
With 16 years of industry experience, we have mature production lines for all four product categories. Our daily delivery capacity leads the industry, and standard products are kept in stock. According to 2024 data, our annual production capacity is:
70,000 sets of 4th/5th axis cables
5,000 hydraulic power units
5,000 tool release cylinders and booster cylinders
2,000 high-pressure through-spindle coolant systems
After recent production line optimizations, we will achieve even higher capacity this year to respond quickly to customer demands.

Q5. When will the products be shipped?
We have ample stock of standard products that can be shipped according to your schedule. For non-standard products, the lead time (2-4 weeks) depends on the selection of core components.
