High-Precision CNC Machine Tool with Advanced 4th Axis Capability

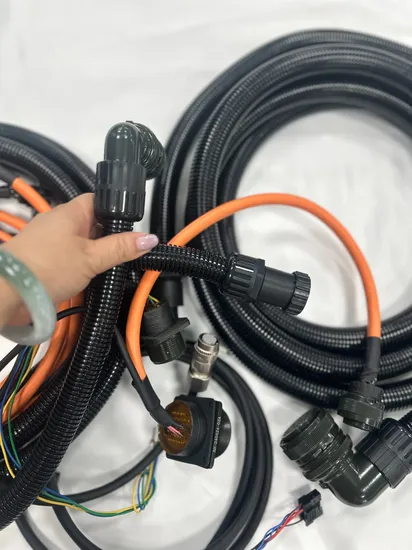

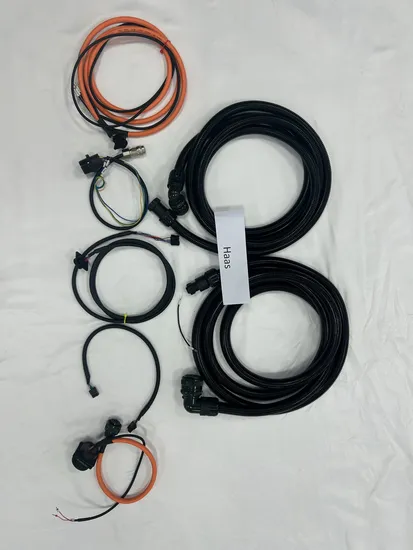

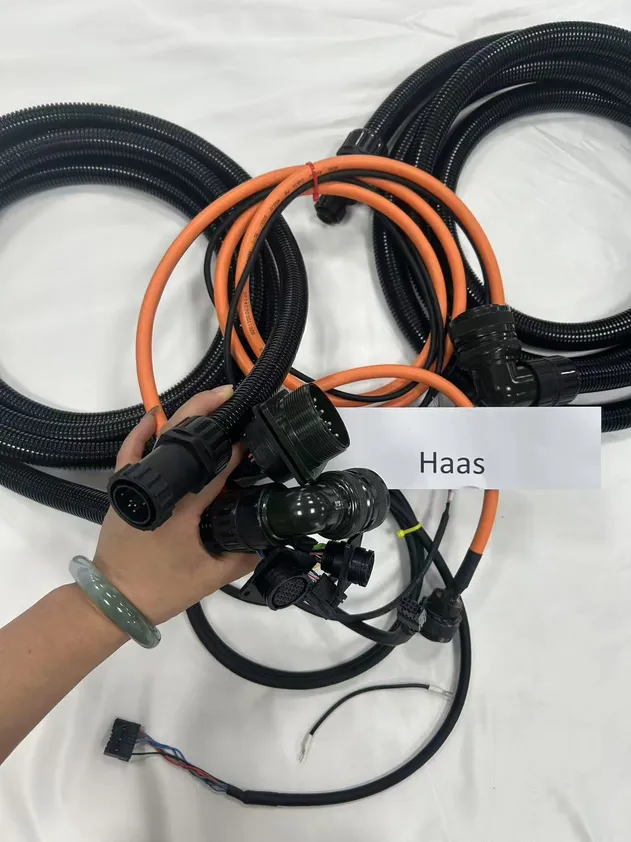

Four axis/five axis wire is a core component designed specifically for the rotational motion unit of CNC machine tools. Its application scenarios can be disassembled as follows:
The fourth axis (A-axis) is installed at the position of the rotating worktable/indexing disc, used to connect servo motors, encoders, and drive the workpiece to rotate 360 ° indexing (such as machining gear end face grooves, polyhedral milling)
The fifth axis (C-axis) is installed at the position of the milling head swing mechanism, used to transmit power and signals to the swing head, achieving ± 120 ° continuous deflection (such as precision machining of aviation impeller five axis linkage)
Composite rotating unit, installed at the B-axis power turret position of the turning and milling composite machine tool, to simultaneously supply energy to the rotating tool and C-axis workpiece table (such as crankshaft turning and milling composite machining)

1. Aerospace field: Processing of aircraft engine blades
2. Medical device manufacturing: Five axis polishing of artificial joints, joint drive of surgical robots
3. Automotive mold repair: laser cladding for curved stamping molds
4. Processing of metal components such as casings for computer/communication and consumer electronics products
5. CNC machining center: metal parts/mold processing
6. Shipbuilding: Processing of ship components

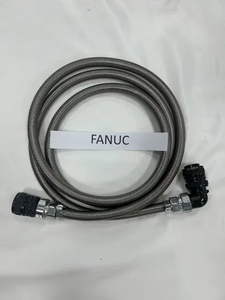

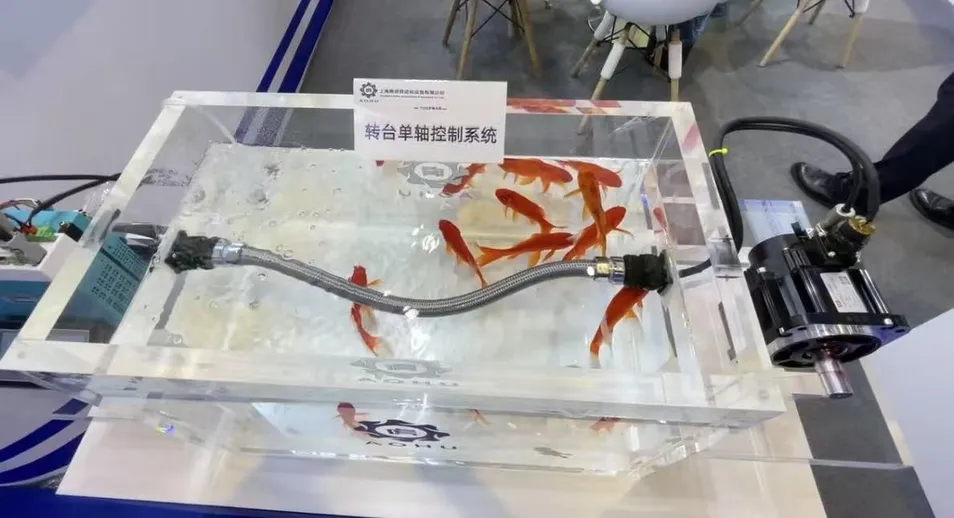

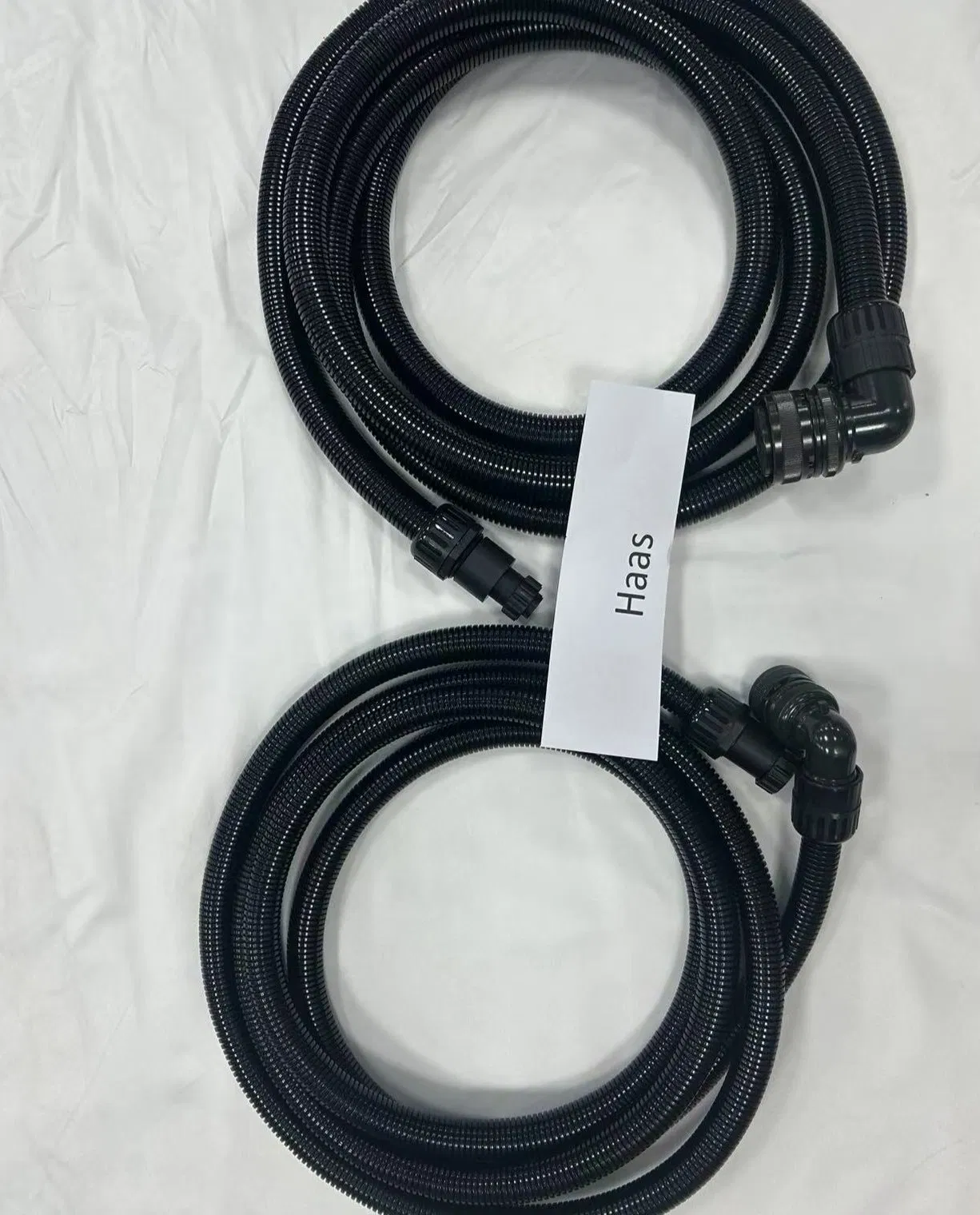

The metal elbows at the four-axis sheet metal section are improved as follows to meet the waterproof requirements:
1. The arc-shaped elbows are changed to 90° elbows to prevent water from entering through the connectors.
2. The raw material is changed from iron to rust-proof alloy, which is more durable and sturdy.

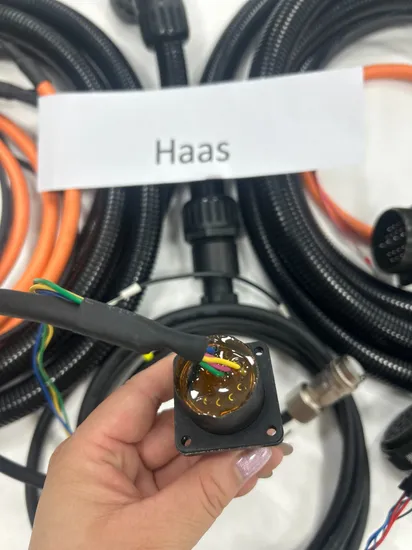

3. An internal conical waterproof plug is installed to protect the bare wires and provide wear resistance and waterproofing.
